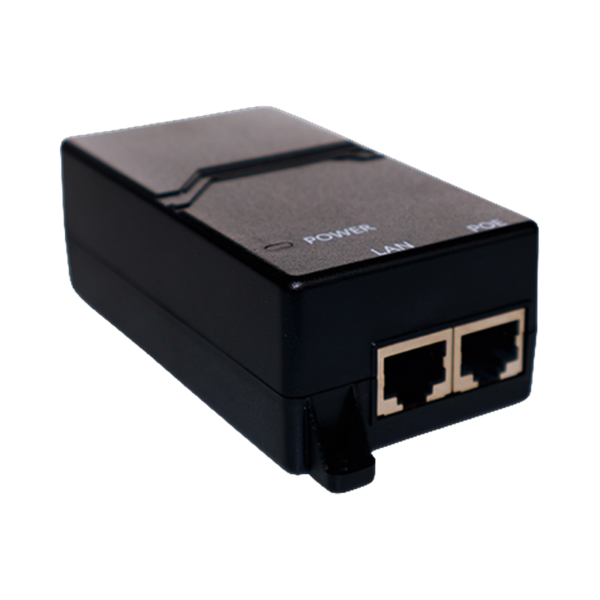

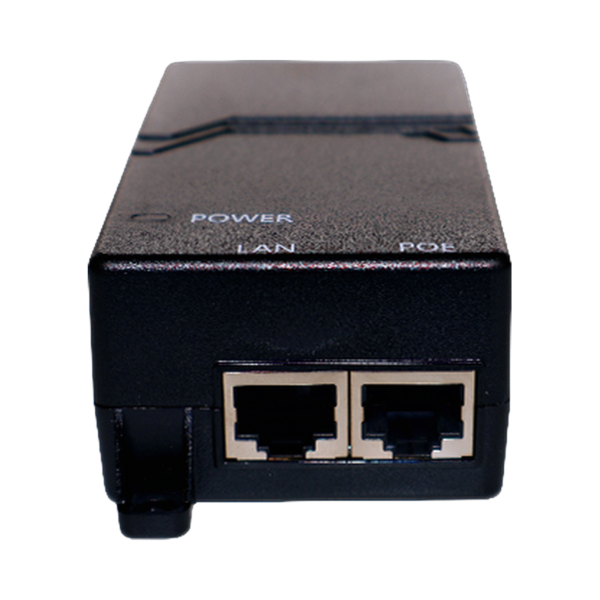

G0720 12–24W Passive PoE Injector
PoE Injectors
G0720
G0720 is a 54V PoE power supply designed for PoE switches, networking equipment and telecom systems.
Key Specifications
Injector TypePassive
Power12–24W
Output24V / 1A · 48V / 0.5A
PoE StandardPassive PoE (non-IEEE)
Data Rate10G / 5G / 2.5G / 1G
Pair Type2-Pair
Input Range18–24V / 48–56V
Features
- IEC 60320 C6 AC Input Connector
Technical Specifications
General
| Injector Type | Passive |
|---|---|
| Power | 12–24W |
| PoE Standard | Passive PoE (non-IEEE) |
| Data Rate | 10G / 5G / 2.5G / 1G |
| Pair Type | 2-Pair |
Input / Output
| Input Range | 18–24V / 48–56V |
|---|---|
| Output | 24V / 1A · 48V / 0.5A |
| Pin Assignment | Mode B: 4/5 (+), 7/8 (−) · Customizable |
| Chipset | Not specified |
