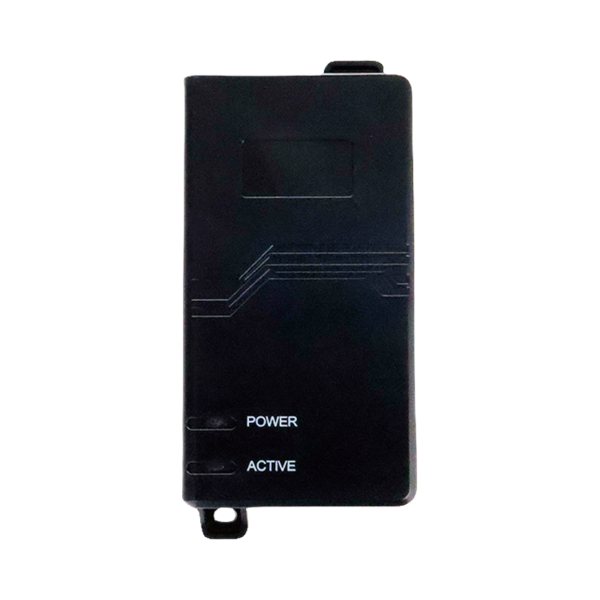

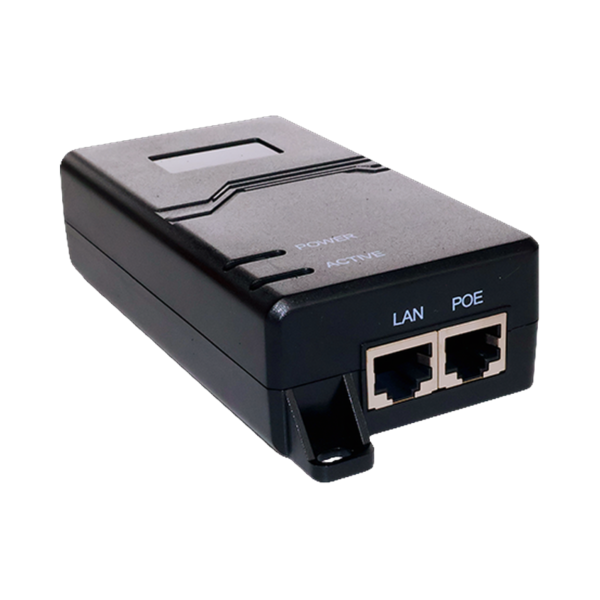

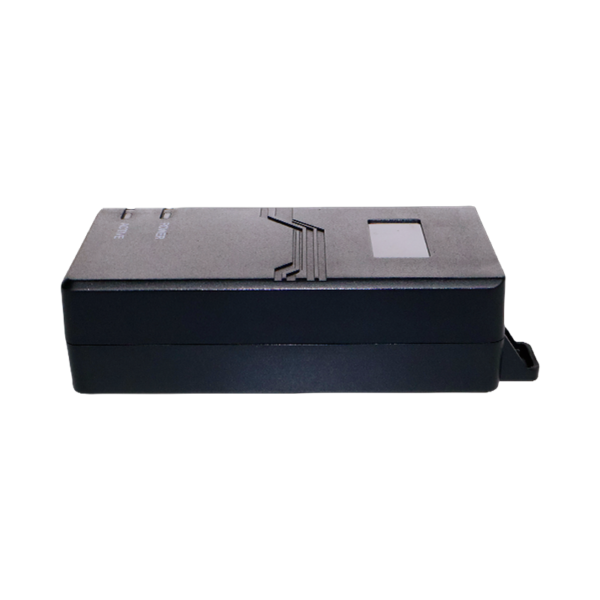

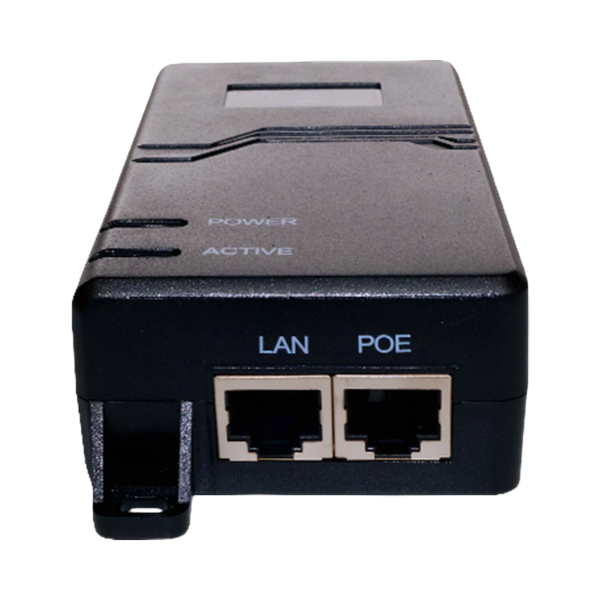

G0566 60W Passive PoE Injector
PoE Injectors
G0566
A high-power 50V/56V four-pair passive PoE injector designed for PtP and PtMP wireless networks and power profiles used by Mimosa B5x backhaul radios.
A high-power 50V/56V four-pair passive PoE injector designed for PtP and PtMP wireless networks and power profiles used by Mimosa B5x backhaul radios.
Key Specifications
Injector TypePassive
Power60W
Output50V / 1.2A · 56V / 1A
PoE StandardPassive PoE (non-IEEE)
Data Rate10G / 5G / 2.5G / 1G
Pair Type4-Pair
Input Range42–57V
Features

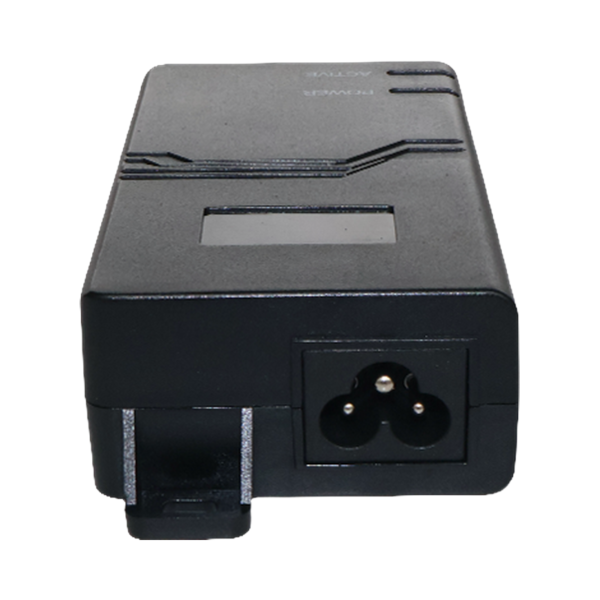

- IEC 60320 C6 AC Input Connector
Applications
WISP Networks
PtP & PtMP Wireless Links
Certifications & Compliance
- UL
- cUL
- CE
- CCC
- FCC
- KC
- PSE
- BIS
Technical Specifications
General
| Injector Type | Passive |
|---|---|
| Power | 60W |
| PoE Standard | Passive PoE (non-IEEE) |
| Data Rate | 10G / 5G / 2.5G / 1G |
| Pair Type | 4-Pair |
Input / Output
| Input Range | 42–57V |
|---|---|
| Output | 50V / 1.2A · 56V / 1A |
| Pin Assignment | 4-Pair: 1/2/4/5 (+), 3/6/7/8 (−) · Customizable |
| Chipset | Not specified |
